Abstraction Layers#

../_images/abstractions.png

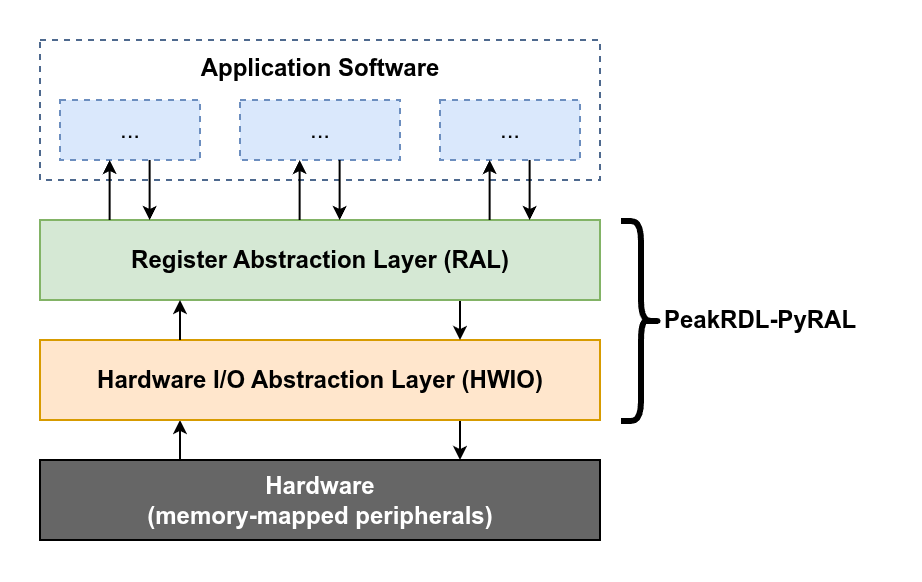

PeakRDL-PyRAL implements two major abstraction layers: The RAL and HWIO.

Hardware I/O Abstraction Layer (HWIO)

The HWIO layer defines how low-level read/write operations are initiated on the hardware. A HWIO layer may issue these accesses locally via a direct memory mapping, via a hardware debugger like JTAG, or even remotely through an SSH or telnet connection. Alternatively it could call read/write operations on a bus driver in a simulated environment like cocotb.

The PyRAL runtime provides several built-in HWIO implementations. See the HWIO page for more details.

Register Abstraction Layer (RAL)

The RAL provides a user-friendly API to the device’s address space. Rather than manipulating registers using cryptic address offsets and cumbersome bit-manipulation operations, application software can manipulate registers and fields more intuitively by-name.

The PeakRDL-PyRAL exporter auto-generates this RAL based on your SystemRDL input. For more details about how to use the RAL, see the RAL API page.

Generating the RAL#

The easiest way to generate the Python RAL is using the PeakRDL command-line:

peakrdl pyral <input RDL files> -o path/to/output/dir/

Note

The exporter will automatically check the contents of the output directory to infer whether the RAL shall use relative or absolute Python imports. If the output directory contains an __init__.py file, then it will assume that it is part of a Python package and will use relative imports.

What gets generated#

The above command results in three files generated in the output directory:

<module>.db

This is a binary sqlite3 database file that contains the RAL definition. This shall be in the same folder as the counterpart <module>.py file.

The contents and organization of this database is not considered part of the public API as it may change in future revisions.

<module>.py

This module provides a get_ral() factory function that creates an instance of the RAL. Use this from your application software to construct it.

<module>._stubs.pyi

Since the RAL is not represented as Python code, IDEs would normally not be able to infer type information about the generated RAL. This type stubs file provides type hint information about the RAL so that static type checkers like Mypy can verify your code, and popular IDEs provide auto-completion while you type.
