PeakRDL-PyRAL#

_images/splash.png

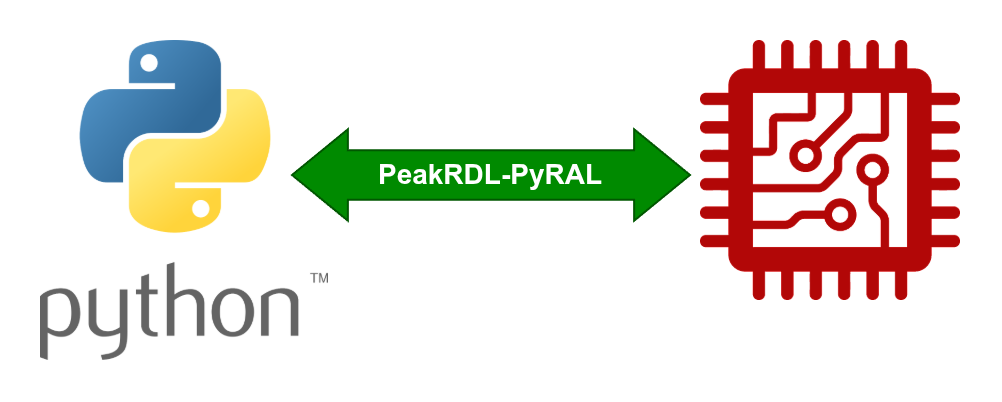

PeakRDL-PyRAL is a register abstraction layer (RAL) generator that provides a lightweight Python interface to your hardware.

  • SQLite3-based RAL back-end. Compact output.

  • Scalable: Good for tiny designs to enormous SoCs. Loads quickly and keeps the memory footprint small.

  • Fully typed RAL output. Enjoy the benefits of static type checking and autocomplete in popular Python IDEs.

Quick Start#

PeakRDL-PyRAL comes in two components: The PeakRDL exporter tool, and the runtime library.

  1. Install PeakRDL-PyRAL:

python3 -m pip install peakrdl-pyral[cli]
python3 -m pip install peakrdl-pyral-runtime

  1. Create a simple SystemRDL design:

example.rdl#
addrmap example {
    reg my_reg {
        field {} f1[7:0];
        field {} f2[15:8];
    };
    my_reg r1;
    my_reg r2;
};

  1. Generate the RAL

peakrdl pyral example.rdl --rename example_ral -o .

  1. Manipulate hardware!

from peakrdl_pyral_runtime.hwio.demo import DemoHWIO
import example_ral

ral = example_ral.get_ral()
ral.attach_hwio(DemoHWIO()) # Attach to "fake" hardware for now

# Read/write registers directly
ral.r2.write(0x1234)
print(ral.r2.read())

# Field-aware read
r = ral.r2.read_fields()
print(r.f1)
print(r.f2)

# Field-aware write
with ral.r2.write_fields() as r:
    r.f1 = 0xAB
    r.f2 = 0xCD

# Pythonic read-modify-write
with ral.r2.change_fields() as r:
    r.f1 = 123
